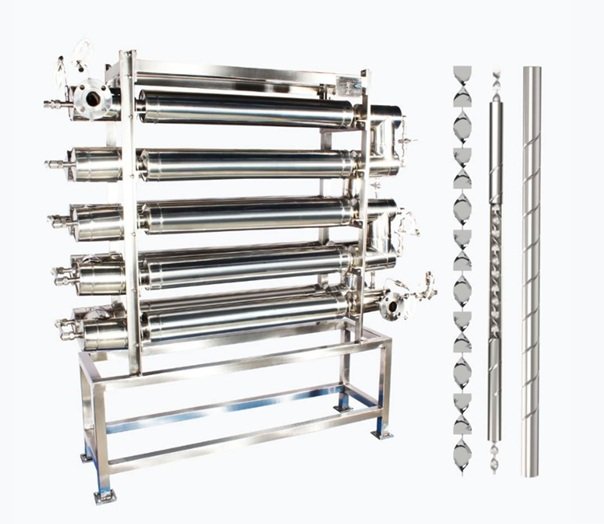

corflo™-reactor

The CorFLO™ reactor is particularly suited for mixing-intensive processes at commercial scale.

Volume: 50 ml to 1,000 L
Flow Rates: Up to 10,000 LPH
Pressure: Up to 100 bar
Temperature: -30 °C to 350 °C
Material: SS316, Hastelloy C
Design: Specially designed CorFLO™ tubes offer higher heat and mass transfer & lower pressure drop as compared to plain tubes.
Applications: Polymerization, blending of reagents, neutralization reactions, emulsification & bioprocessing. Ideal for manufacturing adhesives, sealants, and coatings.

The CorFLO™ is a passive mixing device, meaning the energy for mixing and enhanced heat transfer is derived from the kinetic head of the flowing fluid itself.
It consists of a number of corrugated tubes, each embedded with kinetics-type static mixers.
These provide unparalleled mixing and heat transfer even at low flow rates, along with very narrow residence time distributions.
Reactions: Excellent for nitrations, ozonolysis, and especially suitable for reactions requiring tight residence time control, such as polymerizations and nucleophilic substitutions by amino groups.
